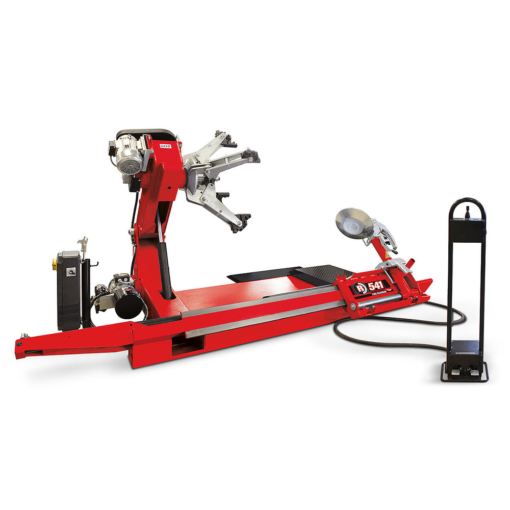

Rotary R541 Commercial Heavy-Duty Tire Changer
Rotary R541 Commercial Heavy-Duty Tire Changer
Couldn't load pickup availability
-
Ordered
- - -
Order Ready
- - -
Delivered
Rotary R541 Commercial Heavy-Duty Tire Changer
About this item :
The dimensions and work strokes ensure maximum efficiency for an entire range of tires. The two-speed rotation chucking table can accommodate rims up to 44” and 56” (with VSG108A12 extensions set). Service Tire Diameters Up to 90″.
- Cable control unit
- Aluminum Adapters Standard
- Rotational control on portable wired stand
- Tire paste lubricant and brush
Features
Tube and Tubeless Tires
Hydraulic Arm Movement
Wired cable control unit inputs.
Specifications
|
TECHNICAL DATA |
R541 |
|
Chucking unit rotation motor |
1.75 Hp / 1-1.3 kW |
|
Hydraulic drive unit motor |
2.95 Hp / 2.2 kW |
|
Rim diameter |
11”- 43” |
|
Maximum tire diameter |
90.5” (2300mm) |
|
Maximum tire width |
51” (1300mm) |
|
Chuck rotation speed (rev/min) |
4-8 |
|
Power Supply |
220v / 3Ø / 60 Hz |
