Rotary R140i Swingarm Tire Changer
About this item :
Heavy duty swing arm structure guarantees proper working conditions for every job. The exclusive 110v single speed motor provides needed torque and the rigid self-centering chuck with a wide clamping range handles a variety of needs. Equipped with a galvanized, double-operating bead breaker cylinder.
- Standard Swing Arm Changer
- Top Quality at an Entry Level Price
- 22″ Outside Clamping
- 24″ Inside Clamping
- Tire Diameters of 40″

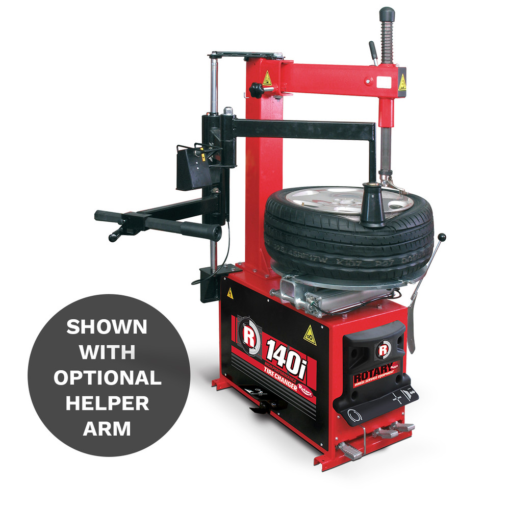

- Shown with optional helper
Features
Removable pedal unit for easy maintenance.
Galvanized cylinder with double-acting bead breaker
designed to protect alloy rims.
Optional helper arm for bead top pressing
and tire lift for large and special tires.
Specifications
|
Technical Data |
R140 |
|
Internal clamping |
13”- 24.5” |
|
Outer clamping |
11”- 22” |
|
Max tire diameter |
40.5” (1030 mm) |
|
Max tire width |
12” (305 mm) |
|
Bead breaker cylinder power at 145 psi |
15” (380 mm) |
|
Electric motor |
6,745 lbs/force |
|
Rotation speed |
7,3 rpm |
|
Max torque turntable |
885 Ft/L lbs (1200 Nm) |
|
Power supply |
110v / 1Ø / 60 Hz |
