Rotary R1065 mobile tablet aligner
Rotary R1065 mobile tablet aligner
Regular price
$6,199.59
Regular price
$6,199.59
Sale price
$15,999.00
Unit price
per
Couldn't load pickup availability
-
Ordered
- - -
Order Ready
- - -
Delivered
Rotary R1065 mobile tablet aligner
Regular price
$6,199.59
Regular price
$6,199.59
Sale price
$15,999.00
Unit price
per
About this item :

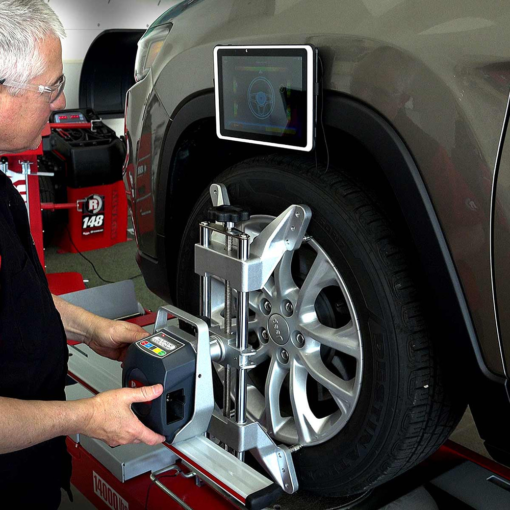

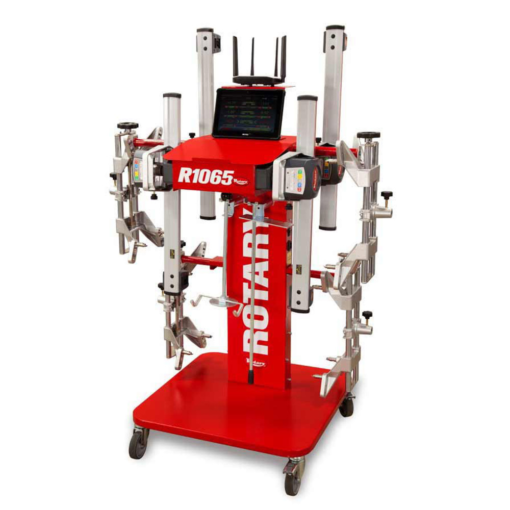

The R1065 Wheel Alignment System offers total drive wireless capability. No minimum bay size required so this system is ready to fit in your shop. Take the alignment tablet with you as you make assessments, adjustments and collect the necessary data to get the job done from anywhere in the bay.
This system features:
- Tablet Operated – (No “PC” Required)
- Wifi Communication (No Cables)

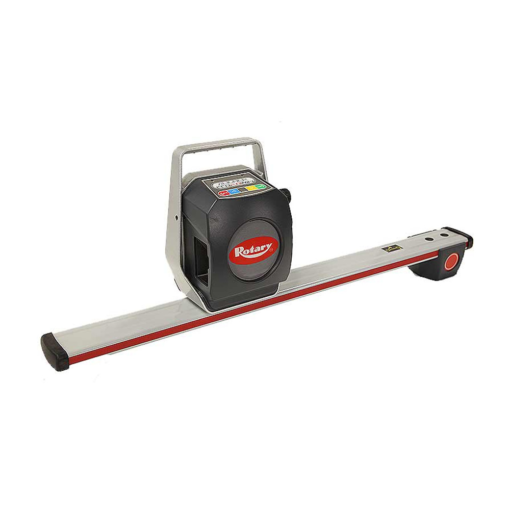

- 4 Sensors (2CCD Cameras Each)
- Sensor Cart Charging Built-In

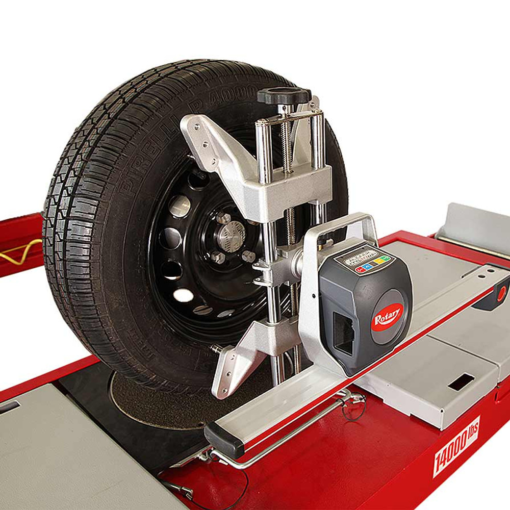

- 4 Point Clamps
- Long-Lasting Batteries
Features
UPDATED ANIMATED INSTRUCTIONS AND GRAPHICS GUIDE THE ALIGNMENT PROCESS
Includes Spoiler Program for lowered vehicles – automatically activated to measure sport and tuned car bodies.
Technical Vehicle Data
3D Run Out Info
Animated Adjustments
Easy Alignment Display
Specifications
| R1065 Alignment System Technical Data | Accuracy | Measuring Range | Total Measuring Range |
| Front axle | |||
| Total toe | + / – 3’ | + / – 2˚ | + / – 20˚ |
| Partial toe | + / – 1’ 30” | + / – 1˚ | + / – 20˚ |
| Set-back | + / – 2’ | + / – 2˚ | + / – 5˚ |
| Camber | + / – 2’ | + / – 3˚ | + / – 10˚ |
| Caster | + / – 5’ | + / – 10˚ | + / – 18˚ |
| King-pin | + / – 5’ | + / – 10˚ | + / – 18˚ |
| Rear axle | |||
| Total toe | + / – 3’ | + / – 2˚ | + / – 20˚ |
| Partial toe | + / – 1’ 30” | + / – 1˚ | + / – 20˚ |
| Set-back | + / – 2’ | + / – 2˚ | + / – 5˚ |
| Camber | + / – 2’ | + / – 3˚ | + / – 10˚ |
| Thrust angle | + / – 2’ | + / – 2˚ | + / – 5˚ |
| Power supply | 110v / 1Ø / 60 Hz |
