QuickJack 7000TLX Extended Portable Car Lift

QuickJack 7000TLX Extended Portable Car Lift

Regular price $789.00
Regular price $789.00 Sale price $1,850.00
SAVE 57% Sold out
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • JCB
  • Mastercard
  • Visa

add_shopping_cart

-

Ordered

local_shipping

- - -

Order Ready

redeem

- - -

Delivered

QuickJack 7000TLX Extended Portable Car Lift

QuickJack 7000TLX Extended Portable Car Lift

Regular price $789.00
Regular price $789.00 Sale price $1,850.00
SAVE 57% Sold out

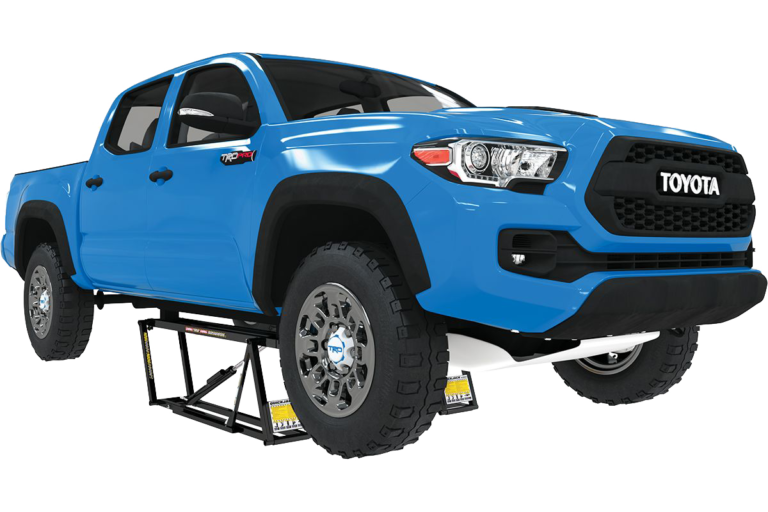

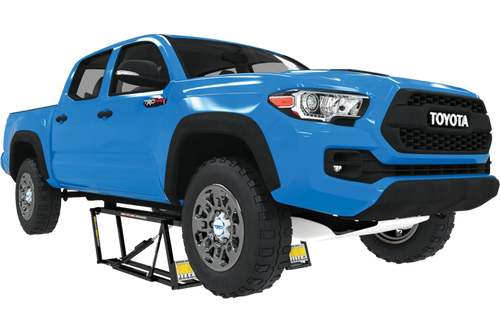

The QuickJack 7000TLX is a portable car lift with a lifting capacity of 7,000 lbs. and an extended platform. It is designed for use in a variety of settings, including garages, driveways, and workshops, and can be easily transported from one location to another. The extended platform provides additional space for vehicles with longer wheelbases, and the 7,000-lb capacity ensures that the lift can handle a wide range of vehicles, including cars, trucks, and SUVs. The QuickJack 7000TLX is a hydraulic lift that operates using a powerful electric pump, and features a compact design that allows for easy storage when not in use. The lift is designed to provide a quick and convenient way to lift and support vehicles for maintenance and repair purposes.


Features & Specs

QuickJack 7000TLX Extended Portable Car Lift specs diagram

Automatic safety locks

Features dual-position automatic safety locks on each TL frame. As the frames rise, these locks glide securely into place at mid-rise and full-rise. Disengage with a simple flip of the lock bar and your car lift is ready for a smooth descent.

Increased lifting height

QuickJack TL models are capable of lifting an extra 3-inches making it easier to perform vehicle maintenance tasks that are both routine and more involved. The extra room gives you more ability and versatility under the vehicle, while doing so in added comfort.

One-handed operation

By holding the pendant control in one hand, your other hand is totally free. No cranking or bending during lifting.

Lifting capacity : 7,000 lbs. (2,268 kg)
(A) Lowered : A – Frame only: 3.5″ (89 mm)
(B) Lowered w/ Small Block : B – With 2″ block: 4″ (102 mm)
(D) Raised (Small Block) : D – With 2″ block: 21.5″ (546 mm)
(E) Raised (Large Block) : E – With 3″ block: 22.5″ (572 mm)
(F) Raised (Stacked Blocks) : F – Max. height: 24.5″ (622 mm)
(G) SUV Adapters : G – With adapters: 24.25″ (610 mm)
(H) SUV Adapters (w/ Pin) : H – With adapters + pin: 27″ (686 mm)
(I) Lifting Point Spread – Max : I – Maximum: 66″ (1,676 mm)
(J) Lifting Point Spread – Min : J – Minimum: 43″ (1,092 mm)
(K) Frame Width : K – Width: 12.5″ (318 mm)
(L) Frame Length : L – Length: 76″ (1,930 mm)
Frame Weight : 98 lbs. (45 kg)
Power Unit Weight : 15 lbs. (7 kg)
Time to full rise: 30 seconds
Shipping Weight : 304 lbs. (138 kg)
Shipping dimensions (ea. frame): 73.75″ (L) x 16.75″ (W) x 6.25″ (H) (1,872 mm x 425 mm x 155 mm)
View full details
