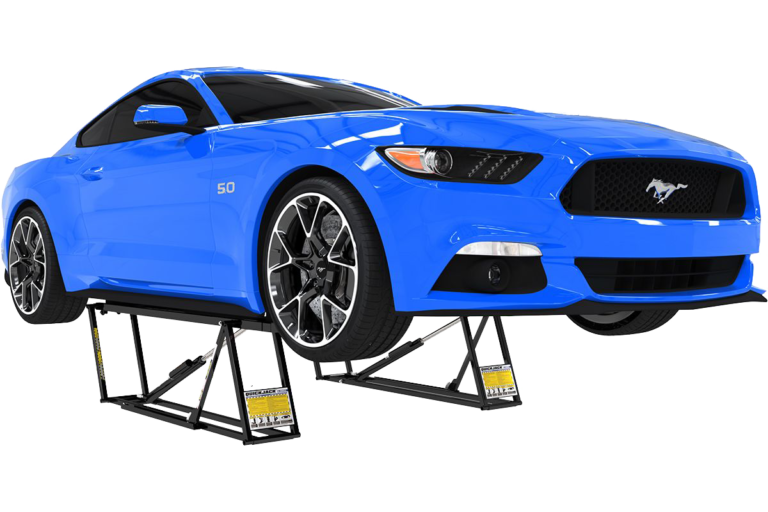

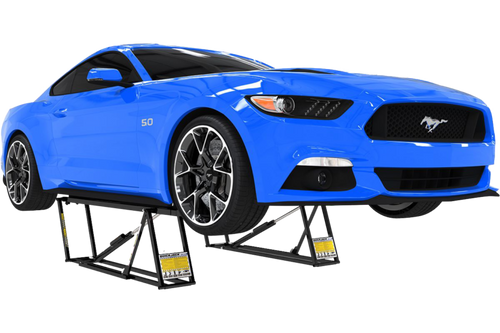

The QuickJack 5000TLX is a portable car lift with a lifting capacity of 5,000 lbs. and an extended platform. It has a lifting height of 24 inches and a frame length of 76 inches. The extended platform provides additional space for vehicles with longer wheelbases, and the 5,000-lb capacity ensures that the lift can handle a wide range of vehicles, including cars, trucks, and SUVs. The QuickJack 5000TLX is a hydraulic lift that operates using a powerful electric pump, and features a compact design that allows for easy storage when not in use. The lift is designed to be easily transported from one location to another, making it ideal for use in garages, driveways, and workshops. It provides a quick and convenient way to lift and support vehicles for maintenance and repair purposes.

Features & Specs

QuickJack 5000TLX Extended Portable Car Lift specs diagram

Automatic safety locks

Features dual-position automatic safety locks on each TL frame. As the frames rise, these locks glide securely into place at mid-rise and full-rise. Disengage with a simple flip of the lock bar and your car lift is ready for a smooth descent.

Increased lifting height

QuickJack TL models are capable of lifting an extra 3-inches making it easier to perform vehicle maintenance tasks that are both routine and more involved. The extra room gives you more ability and versatility under the vehicle, while doing so in added comfort.

One-handed operation

By holding the pendant control in one hand, your other hand is totally free. No cranking or bending during lifting.

Accessories to increase versatility

Most QuickJack accessories were developed from customer suggestion and need. We offer many different lifting options and configurations to customize your QuickJack experience to fit your needs and specifications.

Lifting capacity 5,000 lbs. (2,268 kg)
(A) Lowered : A – Frame only: 3″ (76 mm)
(B) Lowered w/ Small Block : B – With 2″ block: 3.5″ (89 mm)
(D) Raised (Small Block) : D – With 2″ block: 21″ (521 mm)
(E) Raised (Large Block) : E – With 3″ block: 22″ (546 mm)
(F) Raised (Stacked Blocks) : F – Max. height: 24″ (616 mm)
(G) SUV Adapters : G – With adapters: 24″ (597 mm
(H) SUV Adapters (w/ Pin) : H – With adapters + pin: 26.75″ (673 mm)
(I) Lifting Point Spread – Max : I – Maximum: 66″ (1,676 mm)
(J) Lifting Point Spread – Min : J – Minimum: 43″ (1,092 mm)
(K) Frame Width : K – Width: 11″ (278 mm)
(L) Frame Length : L – Length: 76″ (1,930 mm)
Power Unit Weight : 15 lbs. (7 kg)
Shipping Weight : 50 lbs. (113 kg)
Shipping dimensions (ea. frame): 79.5″ (L) x 15.25″ (W) x 5″ (H) (2,015 mm x 385 mm x 129 mm)
