QuickJack 5000TL Portable Car Lift 5,000-lb. capacity / 24" lifting height / 70" frame length

QuickJack 5000TL Portable Car Lift 5,000-lb. capacity / 24" lifting height / 70" frame length

Regular price $990.00
Regular price $990.00 Sale price $1,675.00
SAVE 40% Sold out
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • JCB
  • Mastercard
  • Visa

add_shopping_cart

-

Ordered

local_shipping

- - -

Order Ready

redeem

- - -

Delivered

QuickJack 5000TL Portable Car Lift 5,000-lb. capacity / 24" lifting height / 70" frame length

QuickJack 5000TL Portable Car Lift 5,000-lb. capacity / 24" lifting height / 70" frame length

Regular price $990.00
Regular price $990.00 Sale price $1,675.00
SAVE 40% Sold out

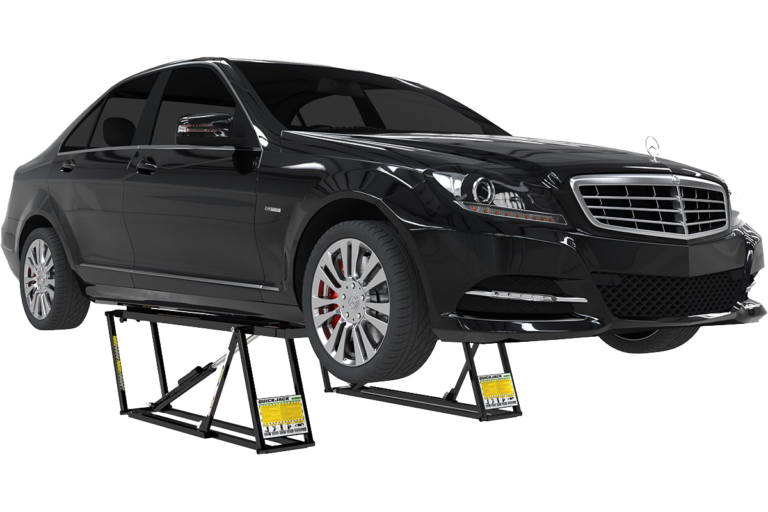

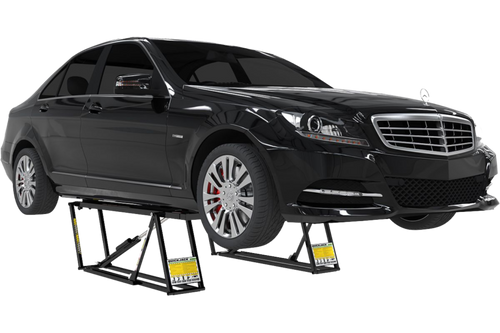

The QuickJack 5000TL is a portable car lift with a lifting capacity of 5,000 lbs. and a compact design. It has a lifting height of 24 inches and a frame length of 70 inches. The 5,000-lb capacity ensures that the lift can handle a wide range of vehicles, including cars, trucks, and SUVs. The QuickJack 5000TL is a hydraulic lift that operates using a powerful electric pump, and features a compact design that allows for easy storage when not in use. The lift is designed to be easily transported from one location to another, making it ideal for use in garages, driveways, and workshops. It provides a quick and convenient way to lift and support vehicles for maintenance and repair purposes.

Features & Specs

QuickJack 5000TL Portable Car Lift specs diagram

Lifting capacity : 5,000 lbs. (2,268 kg)
(A) Lowered :A – Frame only: 3″ (76 mm)
(B) Lowered w/ Small Block :B – With 2″ block: 3.5″ (89 mm)
(D) Raised (Small Block)  : D – With 2″ block: 21″ (521 mm)
(E) Raised (Large Block) :E – With 3″ block: 22″ (546 mm)
(F) Raised (Stacked Blocks) : F – Max. height: 24″ (616 mm)
(G) SUV Adapters :G – With adapters: 24″ (597 mm)
(H) SUV Adapters (w/ Pin) :H – With adapters + pin: 26.75″ (673 mm)
(I) Lifting Point Spread – Max :I – Maximum: 60″ (1,524 mm)
(J) Lifting Point Spread – Min :J – Minimum: 37″ (940 mm)
(K) Frame Width :K – Width: 11″ (278 mm)
(L) Frame Length :L – Length: 70″ (1,778 mm
Frame Weight :78 lbs. (35 kg)
Power Unit Weight :15 lbs. (7 kg)
Shipping Weight :240 lbs. (109 kg)
Shipping dimensions (ea. frame): 73.5″ (L) x 15.25″ (W) x 5″ (H) (1,869 mm x 385 mm x 129 mm)
