MDS-6EXT 6,000-lb. Capacity / Mid-Rise Scissor Lift / Open-Center / Extended Platform
MDS-6EXT 6,000-lb. Capacity / Mid-Rise Scissor Lift / Open-Center / Extended Platform
Regular price
$2,394.00
Regular price
$2,394.00
Sale price
$5,985.00
Unit price
per
Couldn't load pickup availability
-
Ordered
- - -
Order Ready
- - -
Delivered
MDS-6EXT 6,000-lb. Capacity / Mid-Rise Scissor Lift / Open-Center / Extended Platform
Regular price
$2,394.00
Regular price
$2,394.00
Sale price
$5,985.00
Unit price
per
MDS-6EXT 6,000-lb. Capacity / Mid-Rise Scissor Lift / Open-Center / Extended Platform

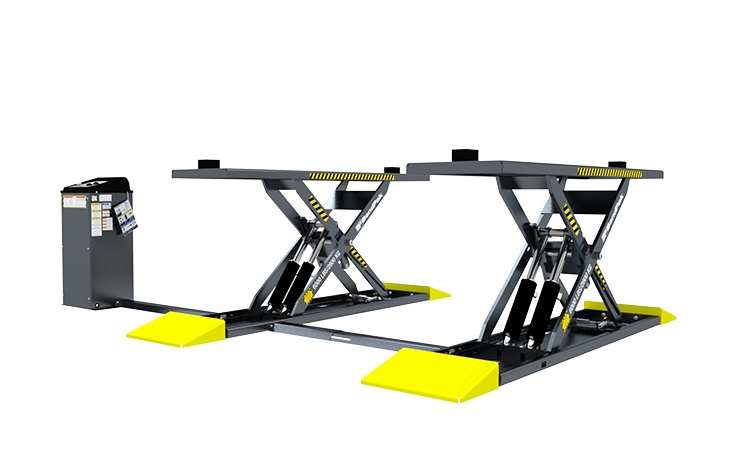

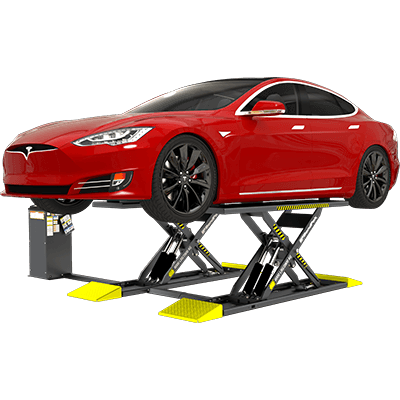

The MDS-6EXT is a mid-rise scissor lift with a capacity of 6,000 lbs. It features an open-center design and an extended platform, providing ample room for working on vehicles. It is designed for use in automotive service and repair shops, and its hydraulic scissor lift mechanism provides a stable and secure platform for raising vehicles for maintenance and repair work. The lift’s mid-rise height allows technicians to easily access and work on the undercarriage of a vehicle.
Features & Specs
- 6,000-lb. lifting capacity
- Open-center design
- Solid-steel safety lock bars
- Multiple lock positions
- Hinge-point with Zerk grease fittings
- Low-profile design
- Rubber blocks included
- Removable ramps
Locking Heights
- Fully Lowered: 5.25″ (133 mm)
- 1st Lock: 21.5″ (546 mm)
- 2nd Lock: 32″ (813 mm)
- Full Rise: 36.75″ (934 mm)
- Lifting capacity: 6,000 lbs. (2,722 kg)
- Lifting height: 36.75″ (934 mm)
- Lifting height + Blocks: 38.25″ (972 mm)
- Lift platform dimensions: 19″ x 78.7″ (484 mm x 2,000 mm)
- Width between platforms: 40″ – 46″ (1,018 mm – 1,168 mm)
- Overall width: Adjustable
- Overall length: 104.3″ (2,650 mm)
- Lowered height: 5.25″ (133 mm)
- Lifting time: 35 seconds
- Motor: 208-230 VAC / 60 Hz / 1 Ph
- Shipping weight: 1,748-lbs. (793 kg)
- Shipping dimensions: 80” x 67” x 20” (2,032 mm x 1,701 mm x 508 mm)
