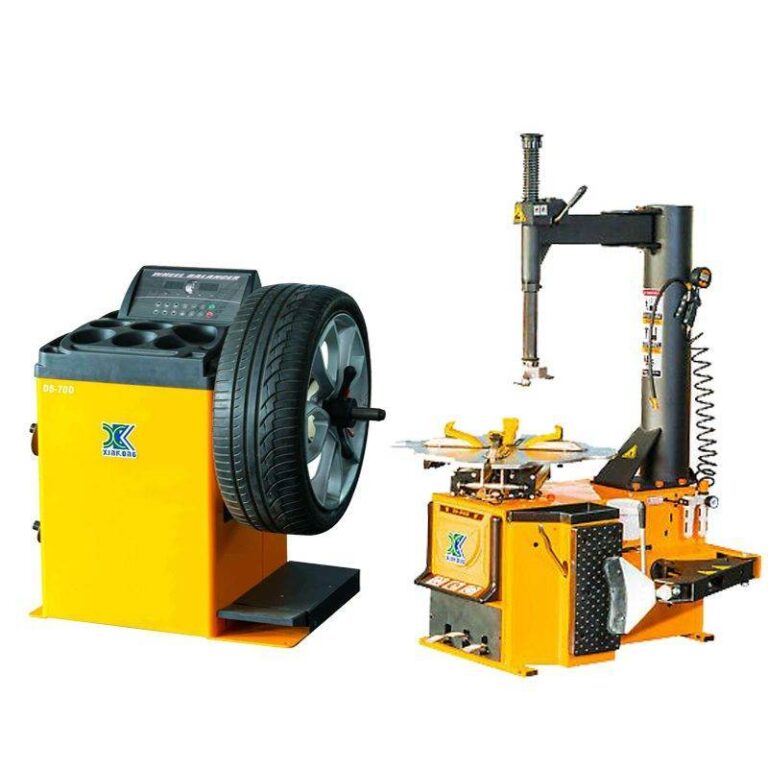

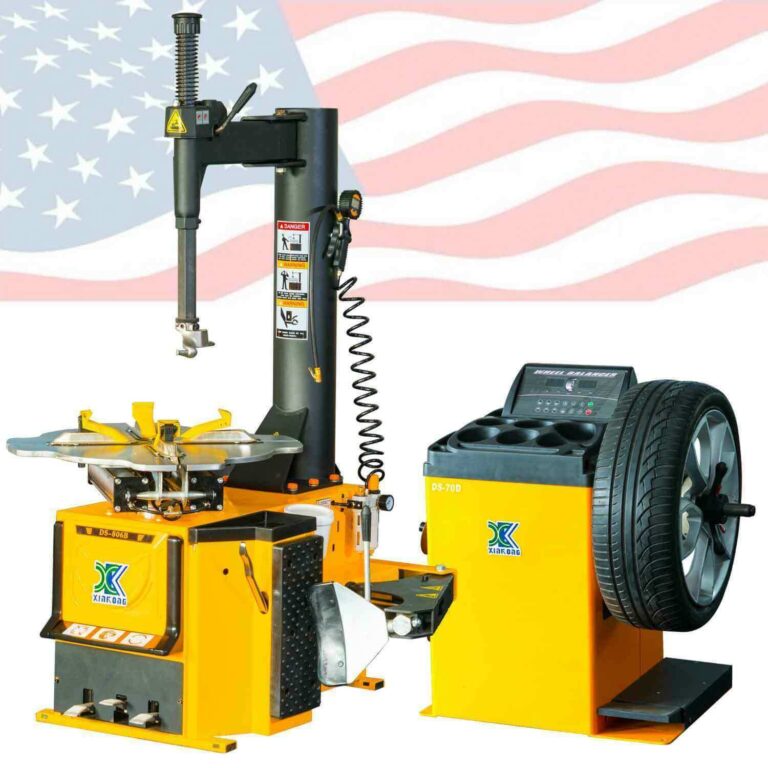

1.5 HP 806B 70D tire changer wheel balancer machine combo rim clamp 14"-28"

About this item:

Tire Changer and Wheel Balancer 806B 70D COMBO. TIRE CHANGER MACHINE FEATURES WHEEL BALANCER MACHINE FEATURES Rim clamp from outside 14"-28" .

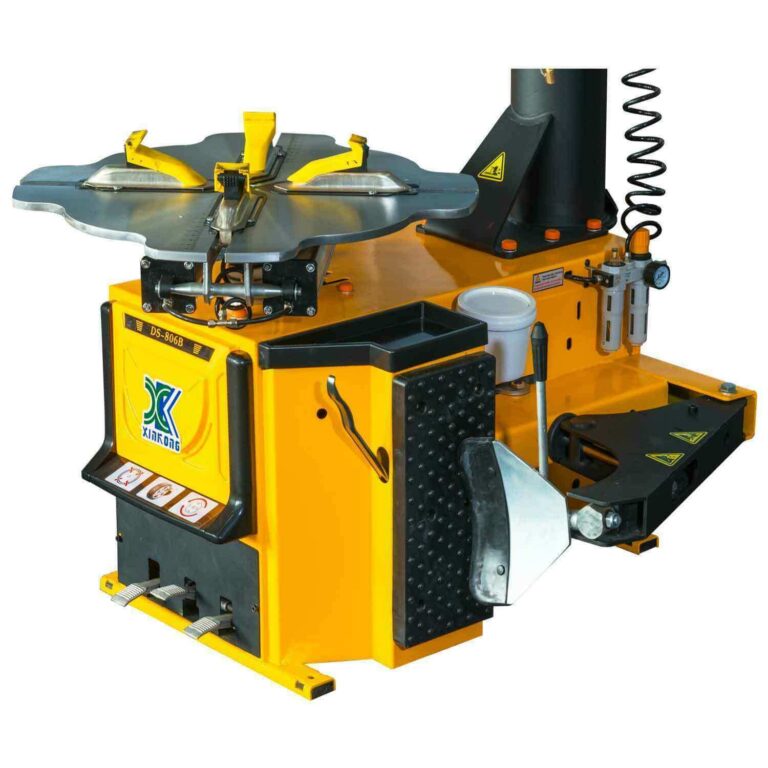

Tire changer machine features:

• Enhanced s41 hexagon shaft with better intensity to avoid mechanical deformation during working.
• The clamping jaw is equipped with a protective sleeve to provide more comprehensive protection for the tires and rims.
• Equipped with mechanical arm which makes mounting and demounting tire more quicker and easier.The clamping jaw is made of special materials and is firm and durable.
• Base of mechanical arm is a complete one set, inside with wear-resistant macromolecule nylon slide block, to achieve smooth operating.
• The structure design is novel, the layout is reasonable, in order to use more flexible and convenient.
• New design automatic working head instead of crowbar and quipped with plastic protective pad to double protect the rim from damage.

Changer machine technical parameter:

• Rim clamp from outside 12"-26"
• Rim clamp from inside 15"-28"
• Max wheel diameter 46"
• Max tire width 5"-14"
• Working pressure 8-10 bar
• Voltage 110V
• Power 1.1KW
• Complete machine packing size 1250x1050x1760mm
• Gross weight 816 lb

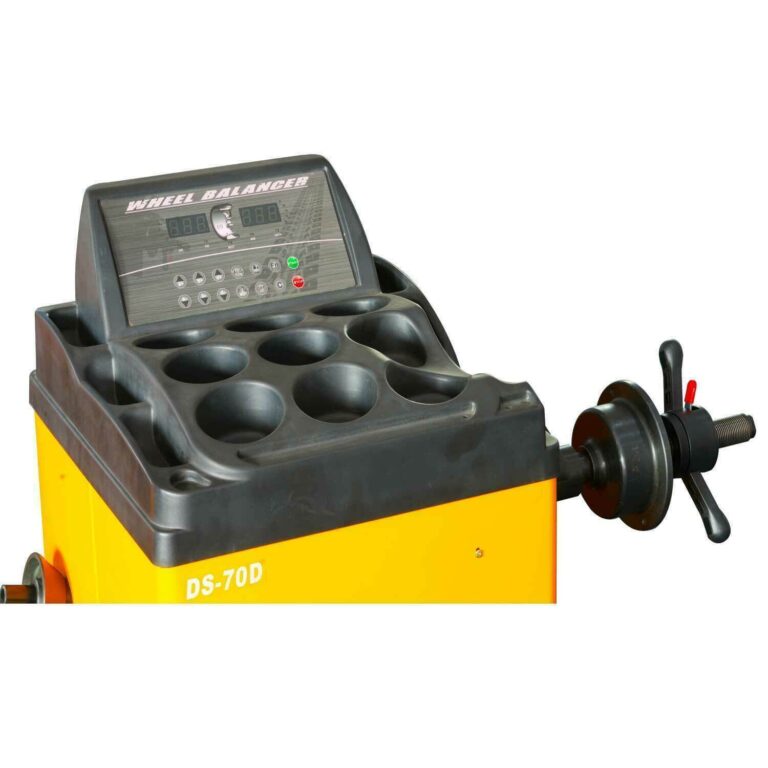

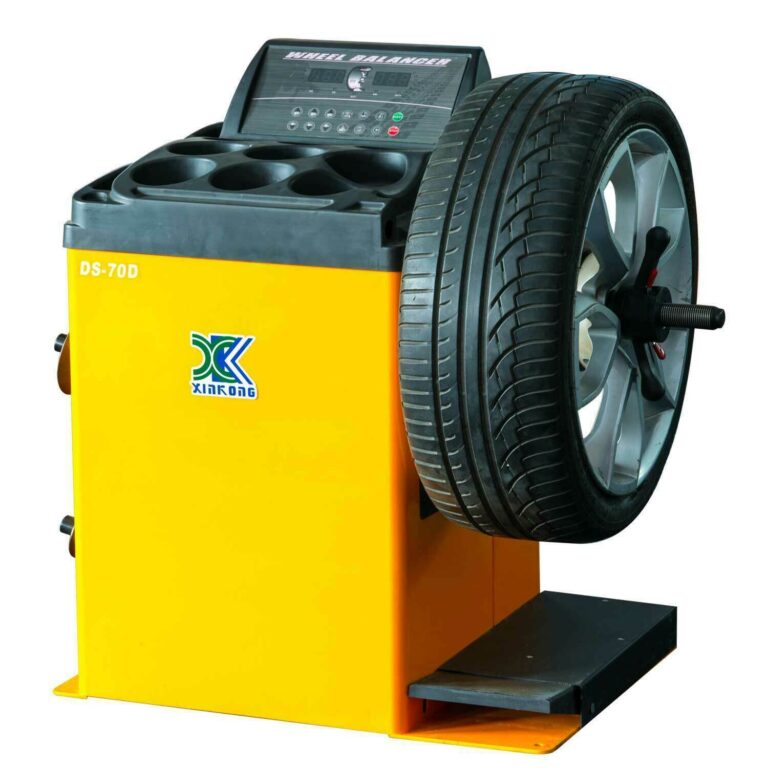

 Wheel balancer machine features:

• with Automatic Static Program And Dynamic Program, Alu Program.
• with External And Internal Data Set Arm, Simple Operation, Measurement Accuracy.
• with A Variety Of Balancing Program, Suitable For Different Wheel Structure.
• htd Program, Split To Hide Weight Behind Spokes.
• opt Program Wheel Vs Rim Optimization.
• foot Brake Positioning At Unbalanced Point, Improve The Balancing Accuracy.
• with Fault Diagnosis System To Check The Working Status Of Key Components, Easy To Detect And Solve The Problem.

Wheel balancer technical parameter:

• Rim diameter 10"-24"
• Max tire diameter 39"
• Tire width 1.5"-16"
• Max tire weight 154 lb
• Packing size 980x700x1050mm
• Rotation speed 200r/ min
• Balancer precision +-1g
• Motor 110V
• Gross weight 269 lb

Specifications:

• Rim Diameter 10″-24″
• Max Tire Diameter 39″
• Tire Width 1.5″-16″
• Max Tire Weight 154 Lb
• Packing Size 980x 700x 1050 Mm
• Rotation Speed 200 R/min
• Balancer Precision -1g
• Motor 110v
• Gross Weight 269 Lb
• Condition: New
• Power Source: Pneumatic
• Vehicle Type: ATV, Heavy Duty/Commercial, Passenger Vehicle
• Brand: XK
• Set or Single Item: Set
