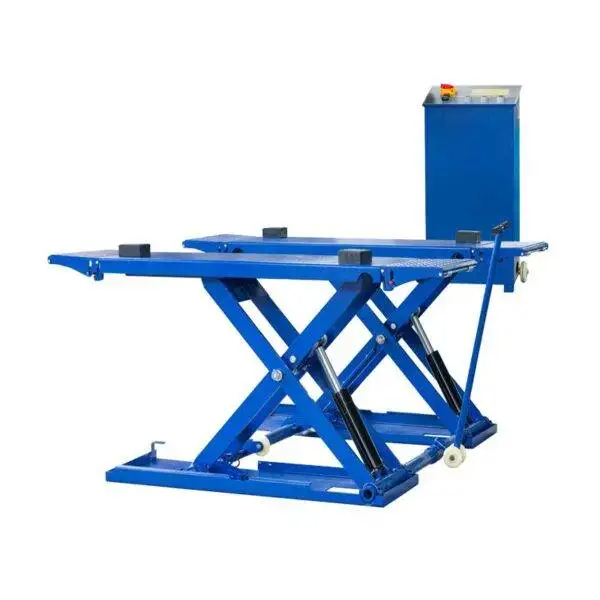

6600 Lb. Automotive Mid Rise Scissor Automotive Auto Car Lift

About this item:

Easy loading drive-on style scissors lift. Double scissors design with four synchronized cylinders for a low profile and a full 70” lifting height. with Max Electricity 220V:30A. bar Inject 15 litters of wearable hydraulic oil into the oil tank. Continuous Working Pressure 210. Air ..

• When connecting the motor refer to the enclosed diagrams, and the motor direction is clockwise.

Main technical parameter:

• Motor Type: Y90L

  Motor Type:	Y90L
  Max. Power:	2.2kw
  Max. Voltage:	AC 400 or 220V ±5%
  Insulation Class:	F
  Pump Type:	P4.3
  Model:	Gear Pump
  Max. Flux:	4.3cc/r
  Joint Type:	Joint Overfull Valve
  Capacity:	3500kg Max.
  Lifting Height:	1024 mm
  Min. Height:	110 mm
  Overall Length:	2026 mm
  Max Electricity:	400V:5A  /  220V:10A
  Max Frequency :	50/60Hz
  Poles :	4 Speed .1450 r.p.m./min.
  Building Shape:	B14
  Overall Width :	1860 mm
  Lifting Time	≤35s
  Lowering Time:	≤25s
  Power Supply:	AC  400V or 220V±5% 50/60Hz
  Power :	2.2kw Hydraulic Oil  12L wearable hydraulic oil Working Temperature  5-40℃
  Working Humidity:	30-95%
  Noise Level:	< 76db
  Installation Altitude Height:	above sea level≤1000M
  Storage Temperature:	-25℃~55℃
  Continuous Working Pressure:	210
  bar Intermittent Working Pressure:	150~300
  bar Inject:	bar Inject: 15 litters of wearable hydraulic oil into the oil tank
