🚨 Clearance Blowout! Almost sold out
12,000 Lbs 2 Post Lift ****Single Point Lock Release****Two Post Auto Car Lift
12,000 Lbs 2 Post Lift ****Single Point Lock Release****Two Post Auto Car Lift
Regular price
$1,459.27
Regular price
$1,459.27
Sale price
$4,695.00
Unit price
per
Couldn't load pickup availability
-
Ordered
- - -
Order Ready
- - -
Delivered
12,000 Lbs 2 Post Lift ****Single Point Lock Release****Two Post Auto Car Lift
Regular price
$1,459.27
Regular price
$1,459.27
Sale price
$4,695.00
Unit price
per

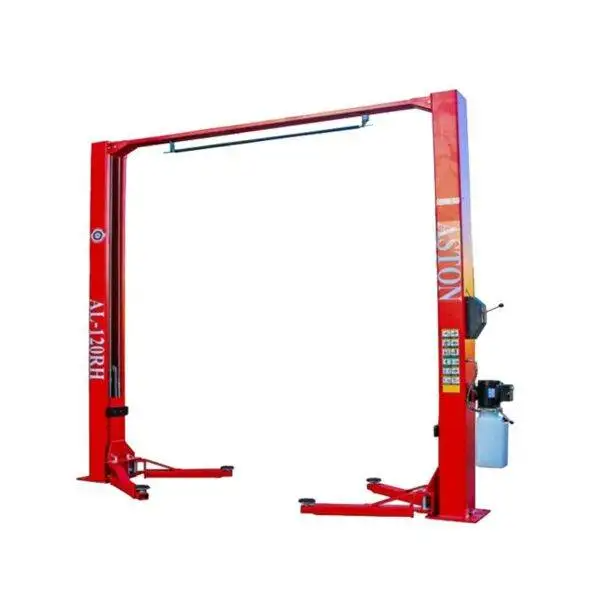

The 12,000 Lbs 2 Post Lift with Single Point Lock Release is a heavy-duty two-post auto lift with a capacity of 12,000 pounds and a convenient single-point lock release system.
Specifications:
|
Model |
AL-120RH |
|
Capacity |
12000 lbs. |
|
Max Lift Height |
72" (1830mm) |
|
Minimum Pad Height |
4.33" (110mm) |
|
Overall Height |
147" (3720mm) |
|
Overall Width |
135" (3430mm) |
|
Width Between Columns |
111" (2820mm) |
|
Drive thru Clearance |
104" (2650mm) |
|
Lifting Time |
40s (Adjustable) |
|
Lowering Time |
30s (Adjustable) |
|
Column Thickness of Steel |
0.24" (6mm) |
|
Carriage Thickness of Steel |
0.24" (6mm) |
|
Arms Thickness of Steel |
0.24" (6mm) |
|
Motor Power |
3.0kw |
|
Voltage |
220V 1ph |
|
Noise |
<70db |
|
Net weight |
2101 lbs. (953kg) |
|
Gross weight |
2145 lbs. (973kg) |
|
Packing size |
147" x 18" x 30" (3720x460x750mm) |
|
Pump Packing size |
36"x12"x14" (900x300x350mm) |
Features:
220V 60HZ 1PH 3HP motor :
- Safety Mechanism
- Capacity: 12,000 lbs
- Single Point Safety Lock Release

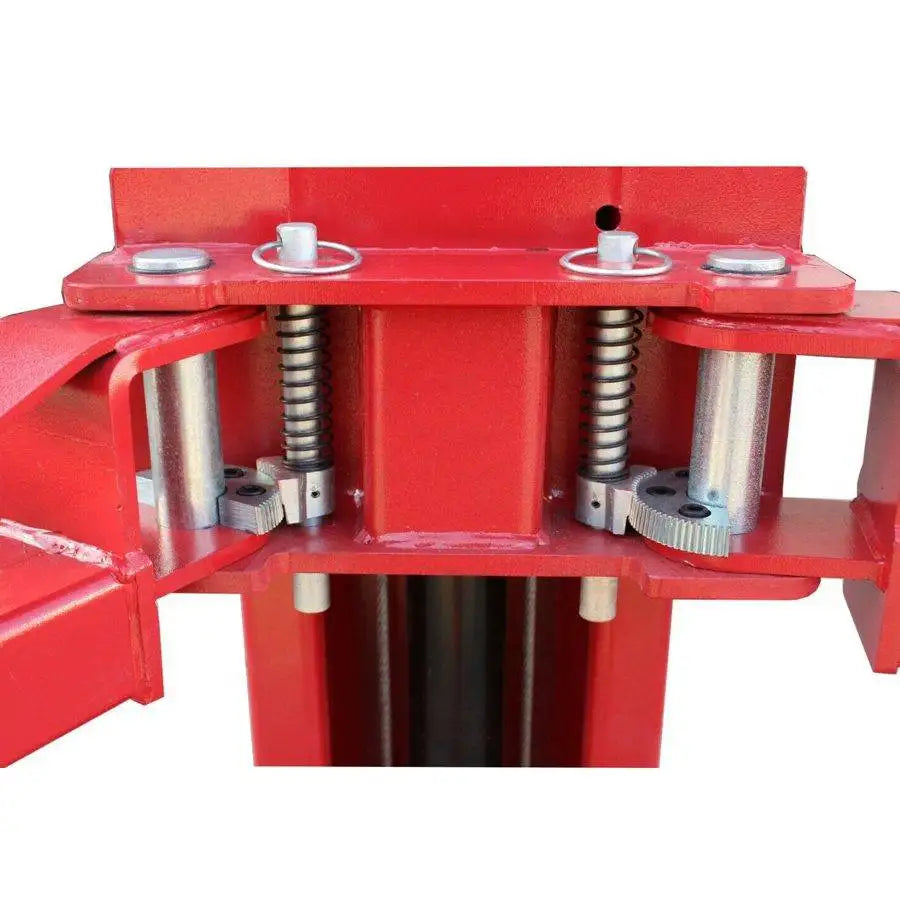

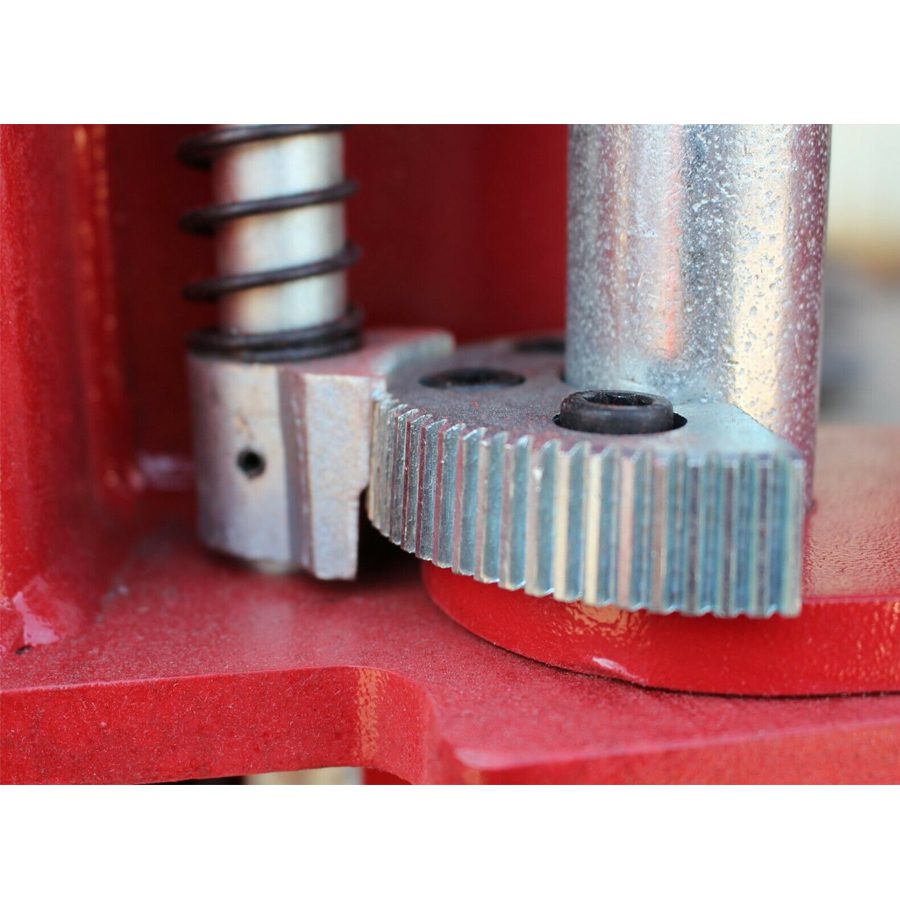

- Automatic arm lock restraints
- Relief valve built in power pump to prevent overloading
- Door guards protection rubber

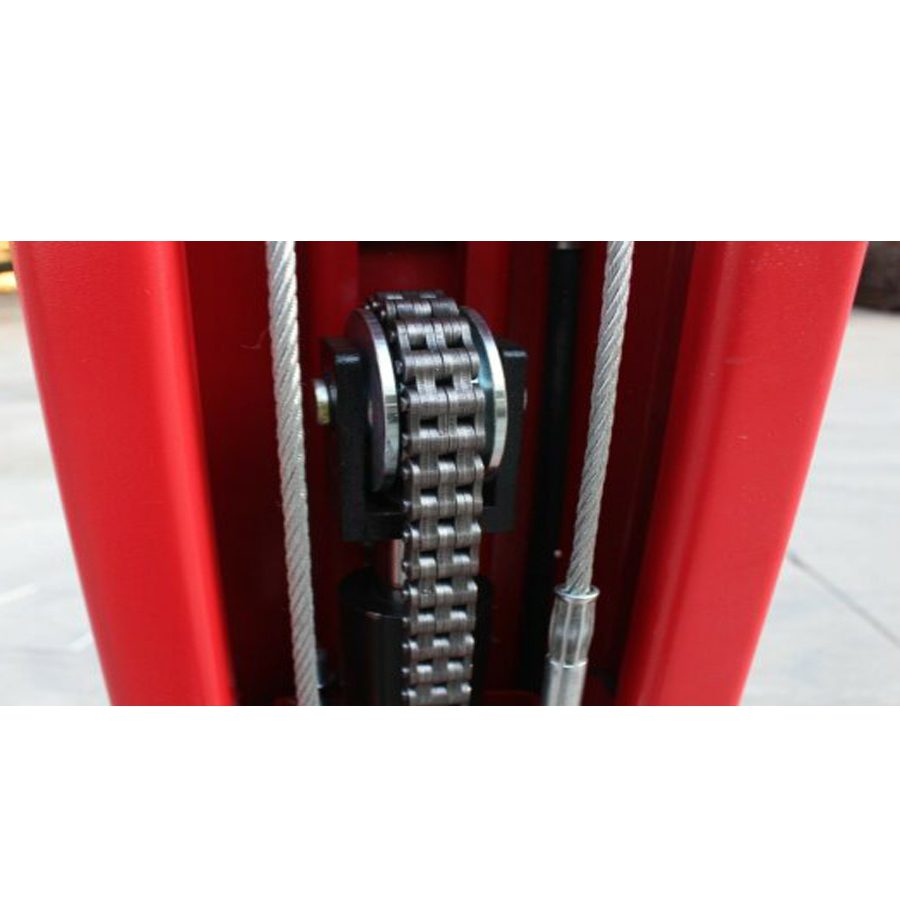

- Heavy duty 5/16" diameter cable and 4.56" pulley reduce high stress on synchronization process and increase cable life
- Stiffened base plate 5/8" thickness
- Ultra high molecular self lubricating nylon slider ensures carriage smooth moving up and down
- Anchor bolts/mounting hardware included
