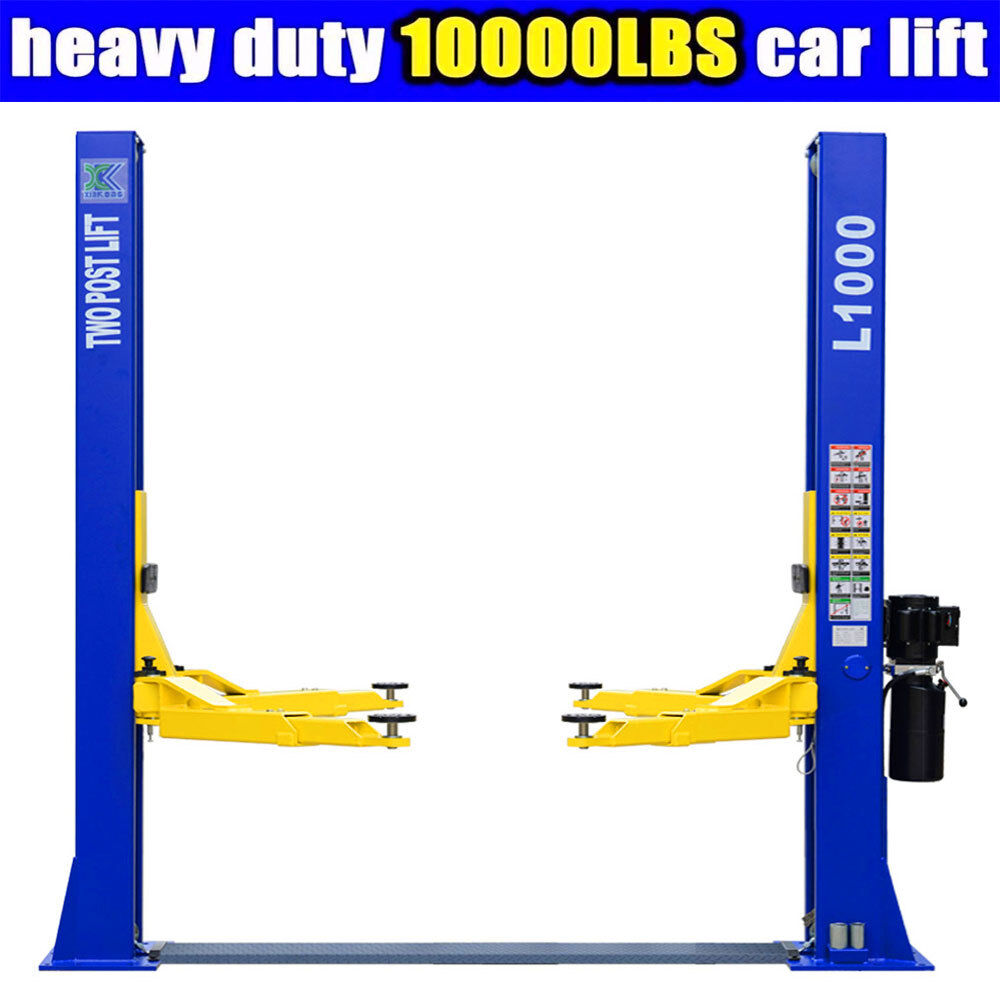

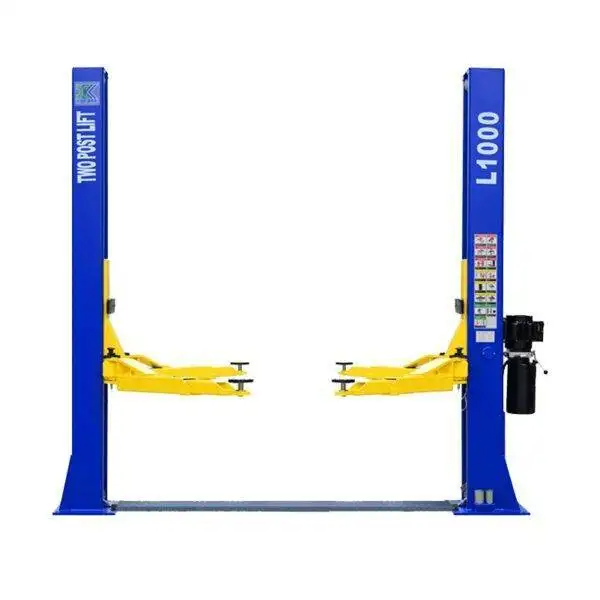

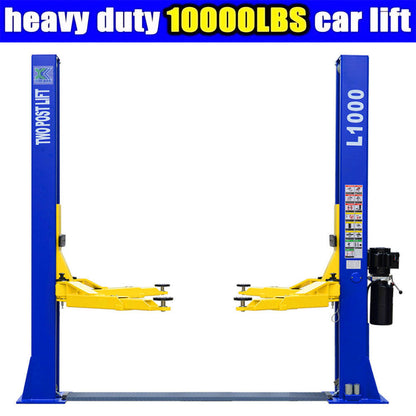

10,000 LB Capacity L1000 2 Post Car Lift Auto Truck Hoist Open Top

The 10,000 LB Capacity L1000 2 Post Car Lift is a heavy-duty, open-top two-post auto lift designed for lifting cars and trucks, with a maximum capacity of 10,000 pounds.

Features:

• Double Point Safety Lock Release

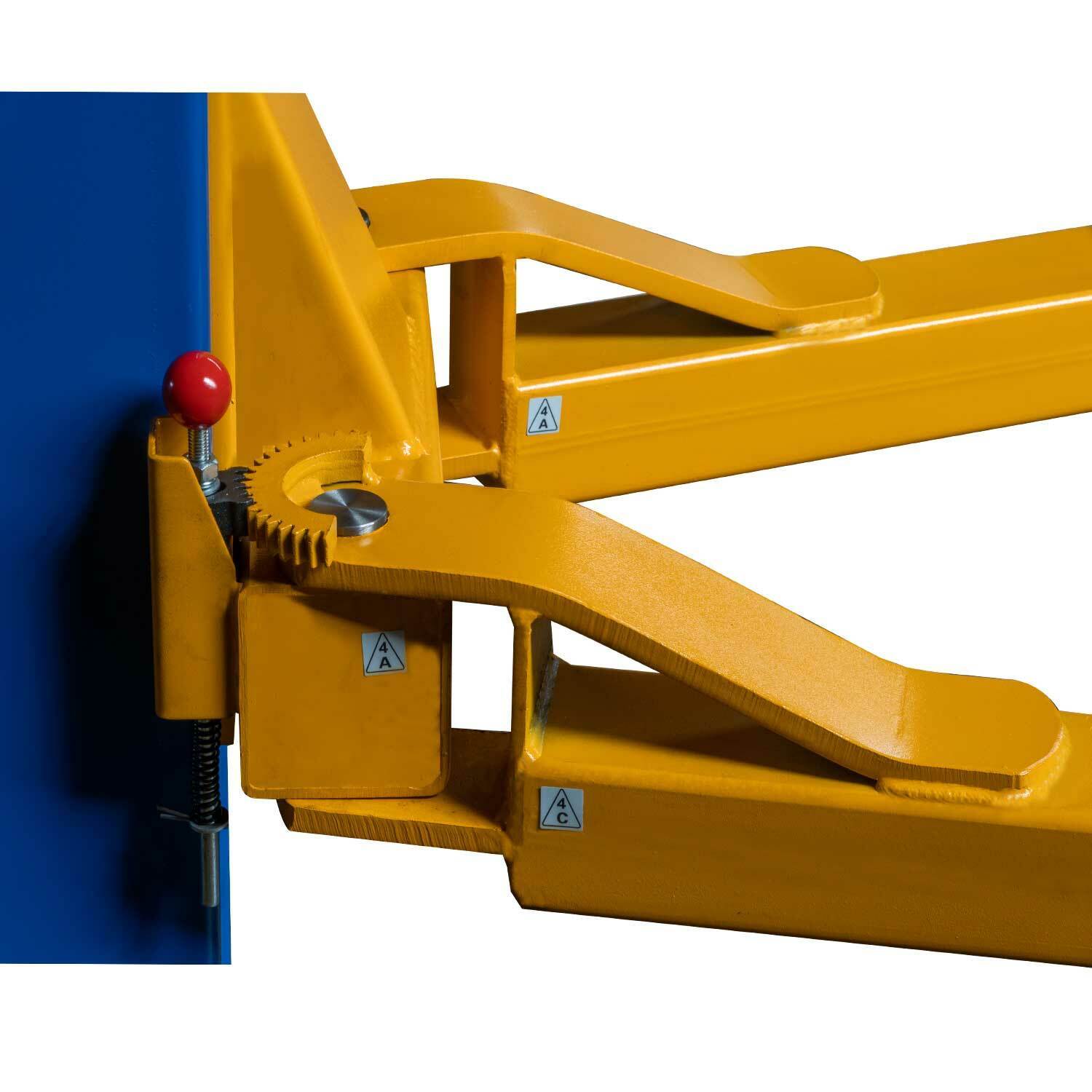

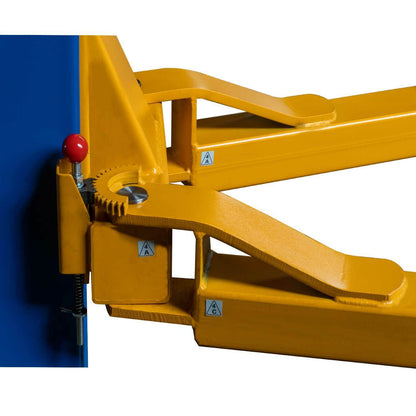

• Automatic arm lock restraints

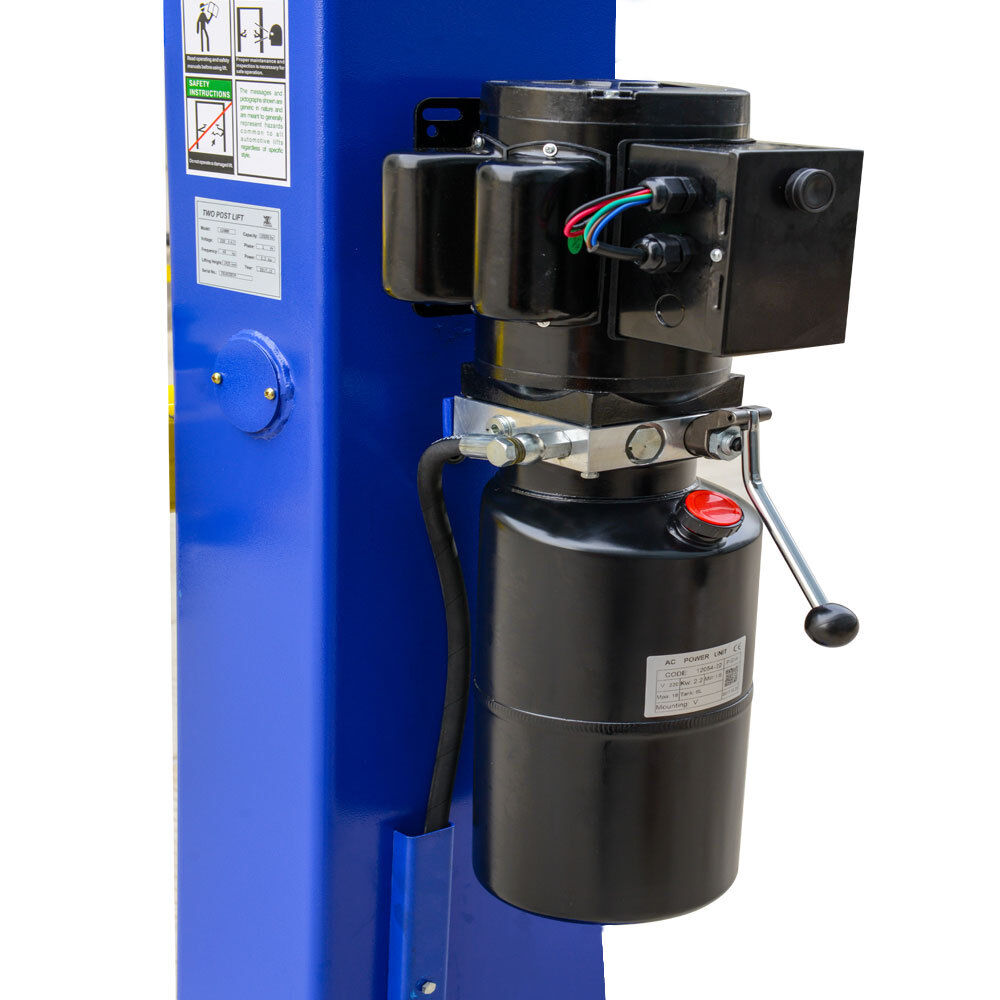

• Relief valve built in power pump to prevent overloading

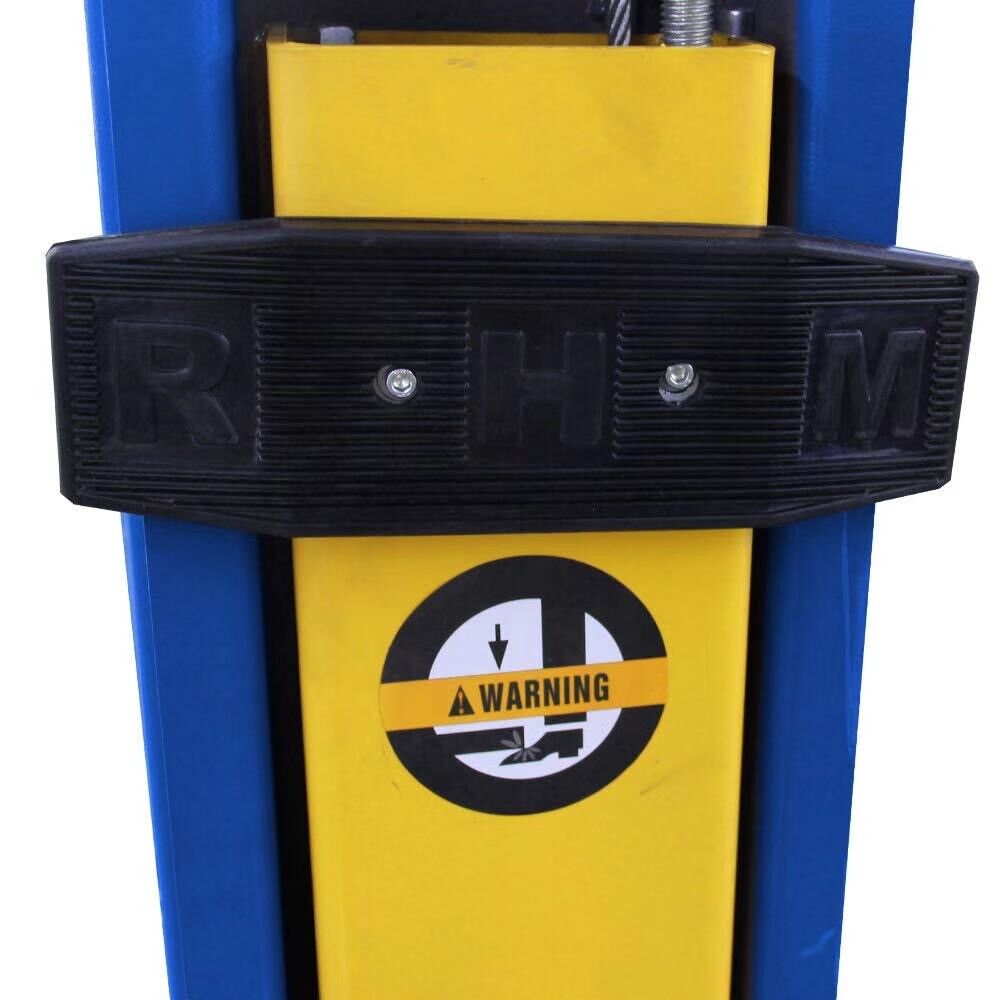

• Door guards protection rubber
• Heavy duty 5/16" diameter cable and 4.56" pulley reduce high stress on synchronization process and increase cable life
• Stiffened base plate 5/8" thickness

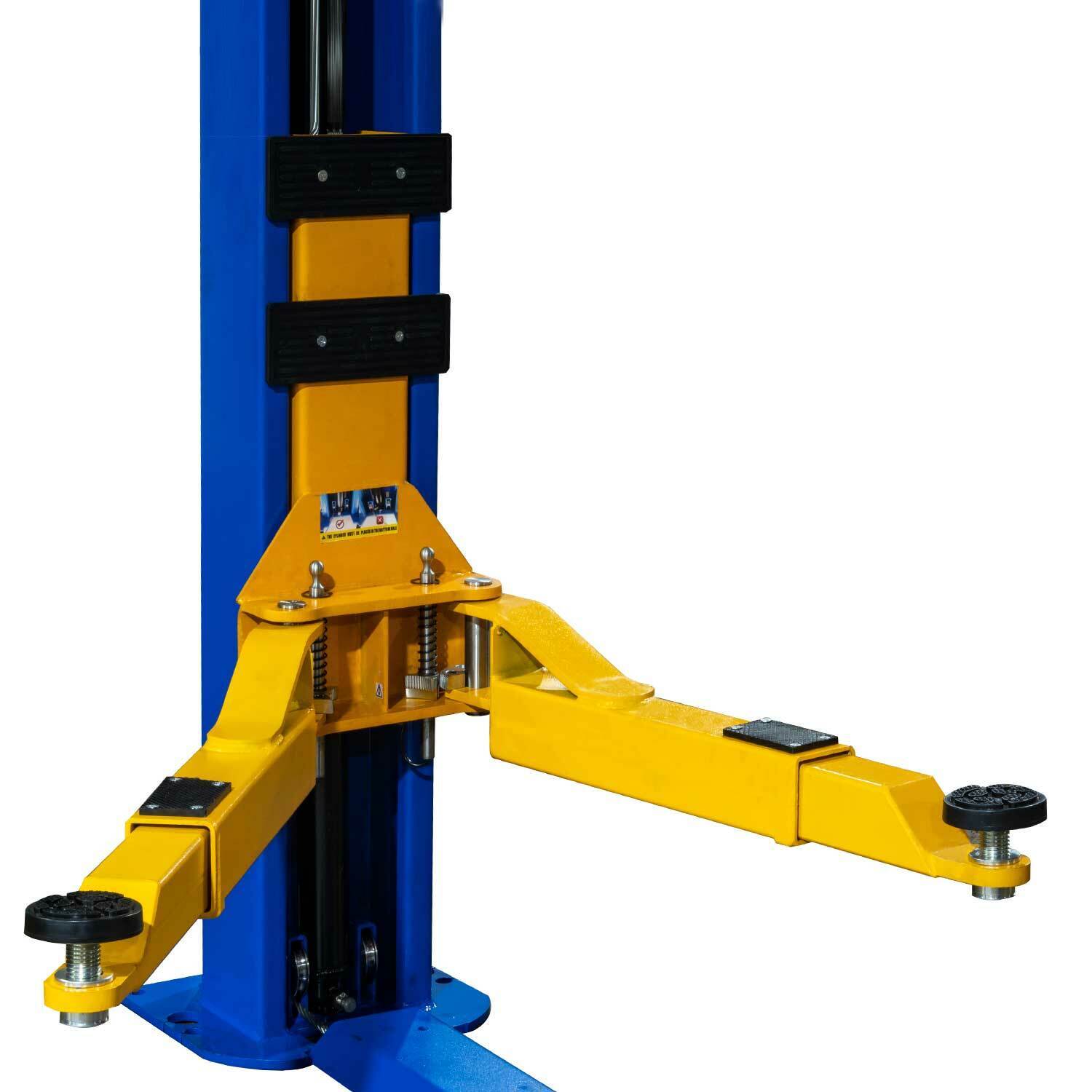

• Ultra high molecular self lubricating nylon slider ensures carriage smooth moving up and down

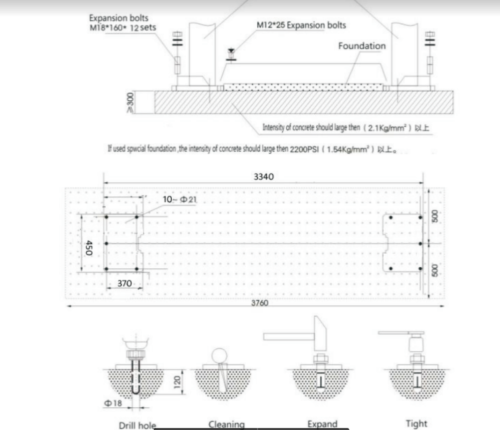

• Anchor bolts/mounting hardware included

• Lifting operation by pressing "UP" button on motor
• Manual lowering operation by pressing lever
• Relief valve built in power pump to prevent overloading

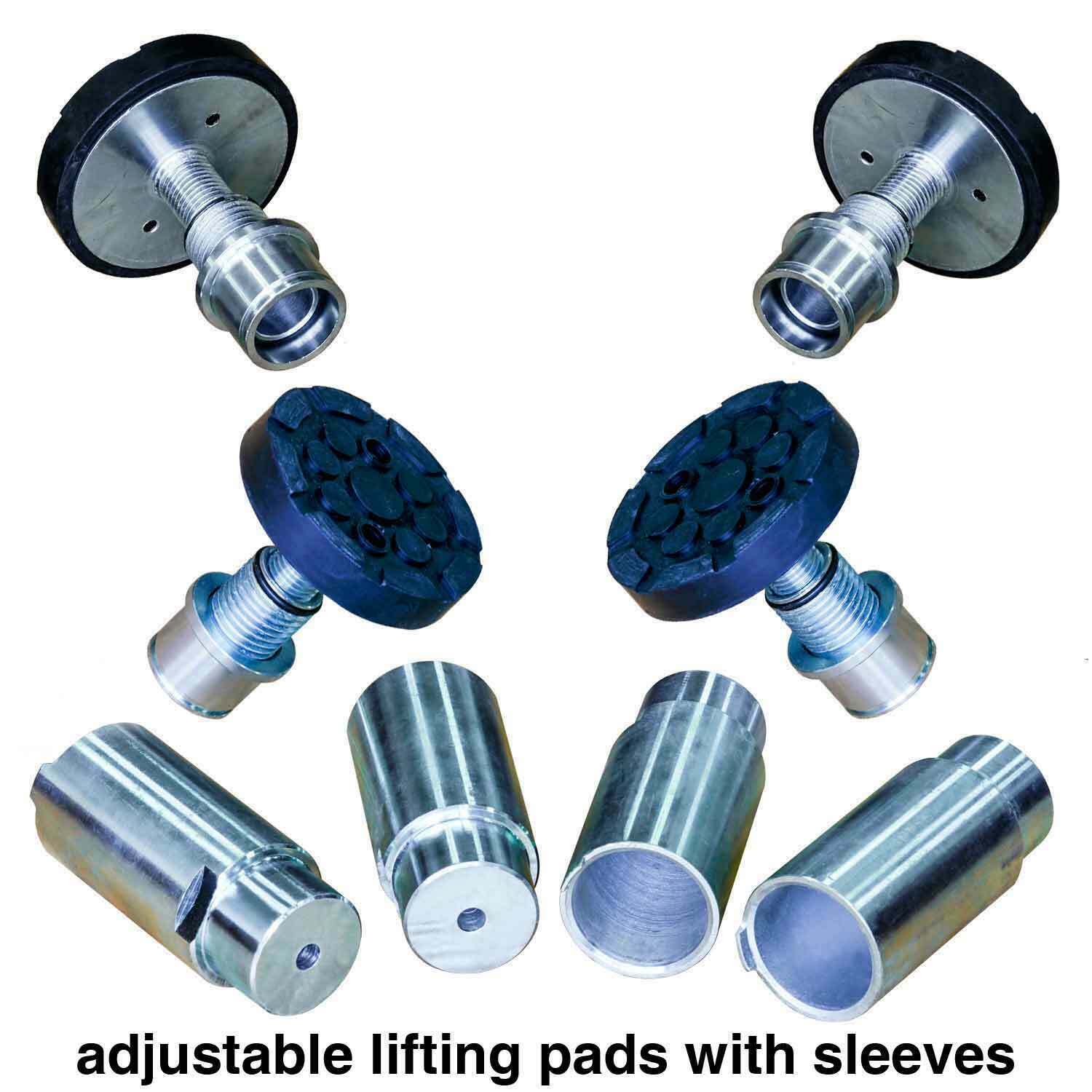

• 1 sets truck adapters included
• Lifting Capacity: 10,000 lbs

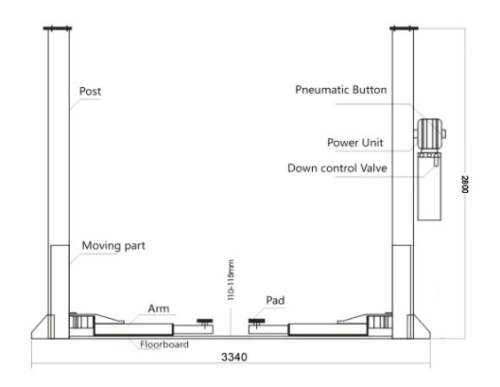

• The overall Height 110-1/4"
• The overall Width  134 21/32"
• Column Width    10.62"
• Base Width   18.89"Column Thickness of Steel    3/16"
• Carriage Thickness of Steel   15/64"
• Arms Thickness of Steel     15/64"
• Front Arm    30.7" to 48"
• Rear Arm     30.7" to 48"

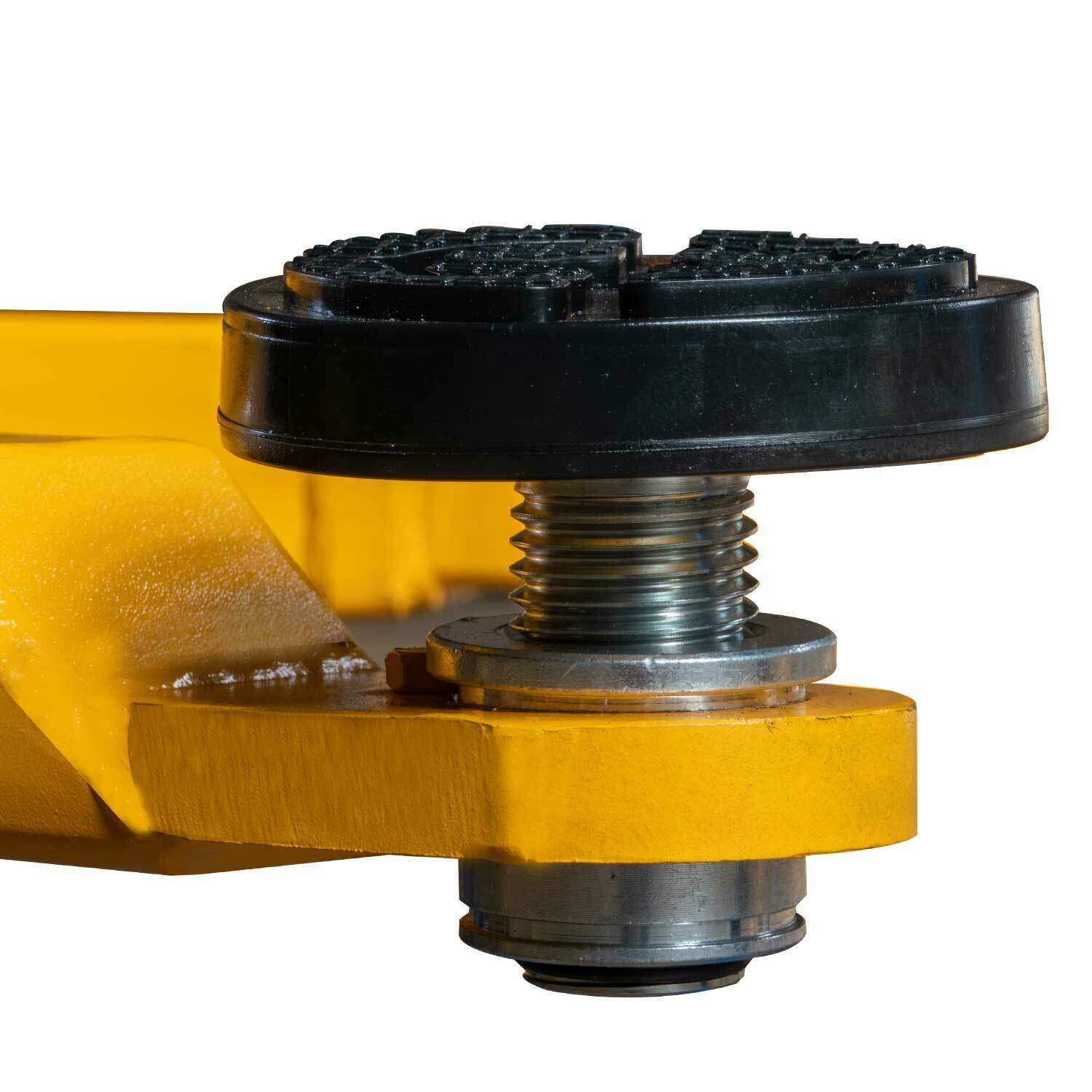

• Min pad height: 3-7/8"
• Lift height max: 78-7/8"
• Drive-thru width clearance: 99 19/32"
• Time to full rise: 20-60 sec
• Shipping Weight: 1350 lbs
